TECHNICAL FEATURES - This operator has been designed in order to obtain an emergency operation of valves, controlled by 1/4 turn pneumatic actuator, whenever the compressed air is missing. The operator is mounted between the valve and the pneumatic actuator. With disengaged operator, the actuator drives the valve directly. The engaged operator allows the emergency operation moving the actuator and consequently the valve plug. Moreover it allows a manual operation of the valve if the actuator should be removed for replacement or repairing. - Protection rate IP65 - Operating temperature -20°C + 120°C
DISENGAGEMENT Pull the knob (2) towards outside and at the same time turn the lever (1) downward (clockwise). In the meanwhile release the knob (2) and be sure that it comes back to the initial position (until you hear the click). At this point the lever (1) cannot turn, the gear box is disengaged and the wheel (3) turn is neutral.
ENGAGEMENT For engaging it is necessary to operate as described above but turning the lever (1) upward (counterclockwise). At is point the gear box is engaged and you can operate with wheel (3) manually.

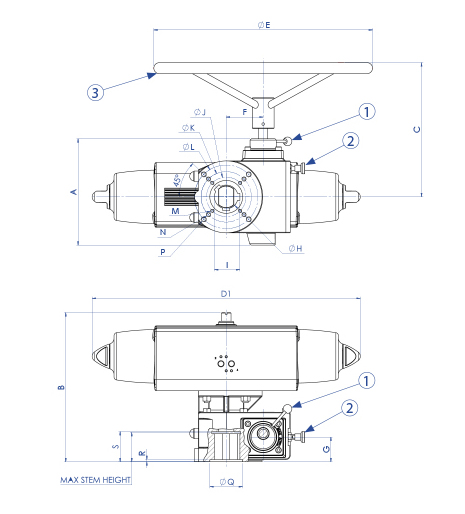

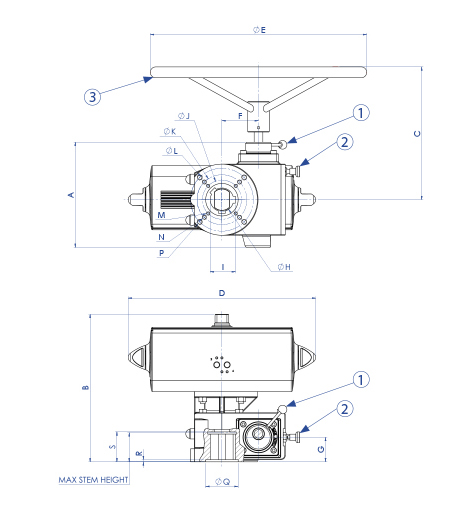

DIMENSION TABLE
GEAR BOX
RRD02CDECD 0000000141004
RRD02CDECD 0000000141004
RRD02CDECD 0000000141004
RRD02CDECD 0000000141004
RRD03DEFDEF 000000141004
RRD03DEFDEF 000000141004
RRD03DEFDEF 000000141004
RRD04EG0EG 0000000381004
KIT ACTUATOR GD-GEAR BOX
KCF055157
KCF075158
KCF075158
KCF105159
KCF105160
KCF105160
KCF125161
KCF125162
KIT ACTUATOR GS-GEAR BOX
ACTUATOR
GD0060 F05-F07
GD0106 F05-F07
GD0120 F05-F07
GD0180 F07-F10
GD0240 F07-F10
GD0360 F07-F10
GD0480 F10-F12
GD0720 F10-F12
ACTUATOR
-
-
GS0060 F05-F07
GS0090 F07-F10
GS0120 F07-F10
GS0180 F07-F10
GS0240 F10-F12
GS0360 F10-F12
A mm.
155
155
155
155
145
145
145
223
B mm.
217
226
229
259,5
286
293
310
338
C mm.
251
251
251
251
283
283
283
306
D mm.
198
237
244,1
289,9
313,6
339,3
387,6
433,1
D1 mm.
−
−
338,5
393,7
409,6
474
520,5
613
ØE mm.
300
300
300
300
300
300
300
600
F mm.
53
53
53
53
65
65
65
85
G mm.
42
42
42
42
51
51
51
57
ØH mm.
32,15
32,15
32,15
32,15
45,3
45,3
45,3
54
I mm.
35,5
35,5
35,5
35,5
48,6
48,6
48,6
58,3
ØJ mm.
50
50
50
50
70
70
70
102
ØK mm.
70
70
70
70
102
102
102
140
ØL mm.
102
102
102
102
125
125
125
-
M mm.
M6
M6
M6
M6
M8
M8
M8
M10
N mm.
M8
M8
M8
M8
M10
M10
M10
M16
P mm.
M10
M10
M10
M10
M12
M12
M12
-
F/F ISO 5211
F05/F07/F10
F05/F07/F10
F05/F07/F10
F05/F07/F10
F07/F10/F12
F07/F10/F12
F07/F10/F12
F10/F14
ØQ mm.
42,35
42,35
42,35
42,35
60
60
60
75
R mm.
4
4
4
4
6
6
6
2
S mm.
47
47
47
47
60
60
60
69
MAX STEM HEIGHT mm.
45
45
45
45
58
58
58
66
Weight (GD) Kg.
9
10
10,5
12
23
24
26,5
33,5
Weight (GS) Kg.
−
−
11
13,5
24
26
29
37,5
The sizing of pneumatic actuators has been done considering a minimum supply pressure of 5,6 barg. For pressure rate other than standard please contact our Sales Department directly.
