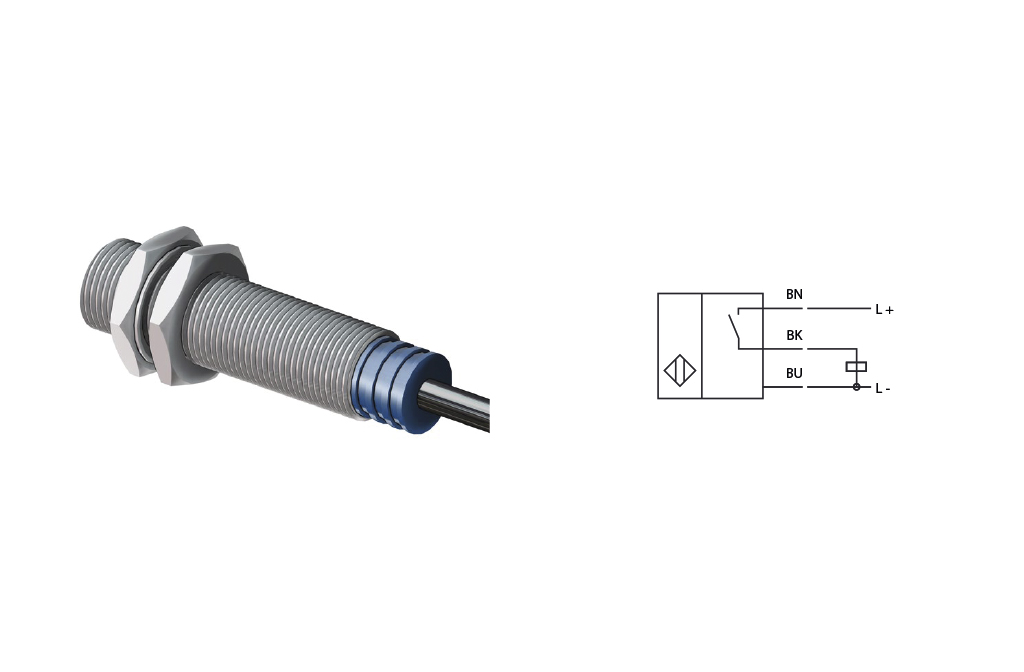

TECHNICAL FEATURES - 3-wire DC PNP M12 inductive limit switch. - Suppy voltage: 10÷30 V DC. - Current consumption: 0÷12 mA. - Protection rate IP 67. - Working temperature: from -25°C to +70°C. - Limit switch working signalled by ring LED. - According to EN 60947-5-2. - Mounting kit to be ordered depending on the height of the actuator shaft.* - For the version with connector, you can order also the cable.*

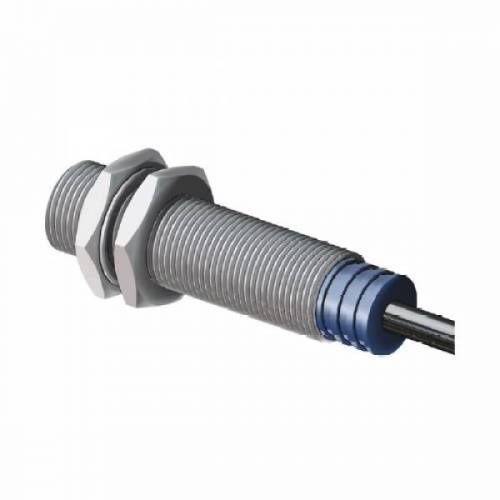

PROXIMITY LIMIT SWITCH

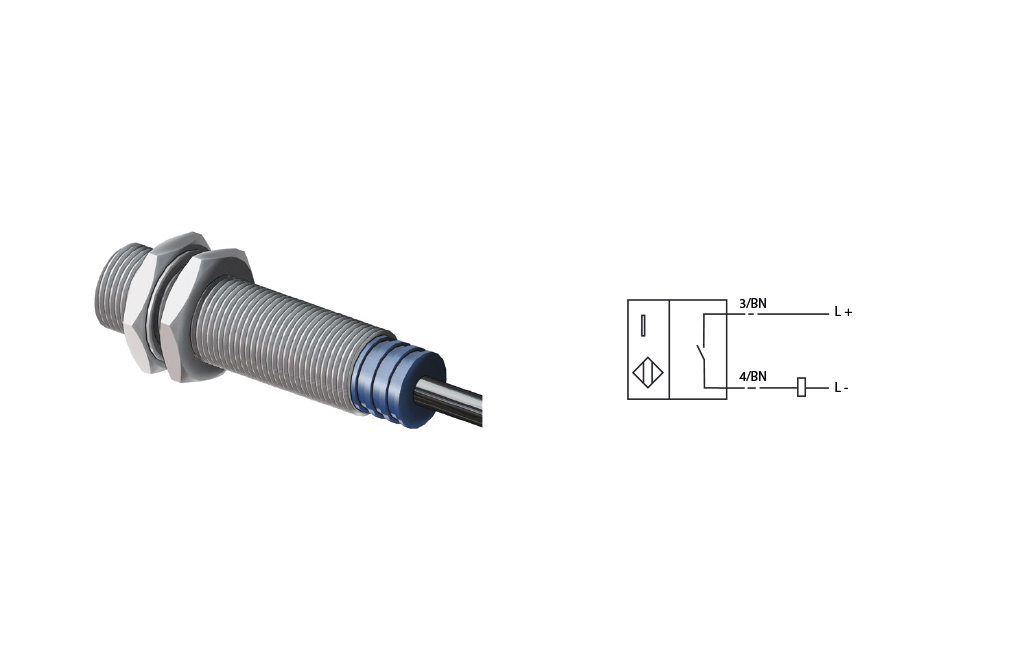

TECHNICAL FEATURES - 2-wire DC M12 inductive limit switch. - Supply voltage: 6 to 60 V DC. - Current consumption: 4 to 100 mA. - Protection rate: IP 67. - Working temperature: from -25°C to +70°C. - Limit switch working signalled by ring LED. - According to EN 60947-5-2. - Mounting kit to be ordered depending on the height of the actuator shaft.* - For the version with connector, you can order also the cable.*
* For mounting kit (code: KBF85...) and connection cable, to be ordered separately, see page 29 on accessories catalogue.
